DIAGRAMMER · TL6000
Talaria Komodo
26 tegninger tilgængelige

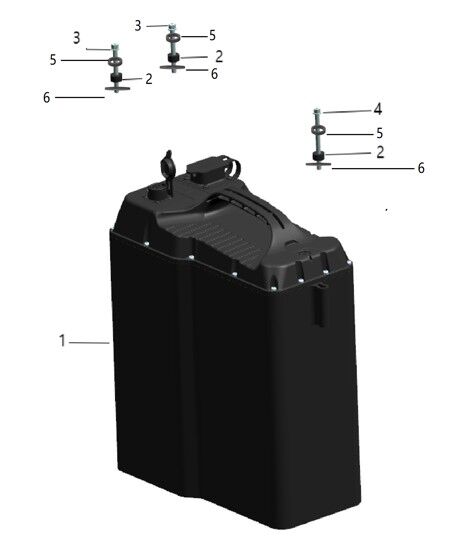

BATTERY PACK1 del

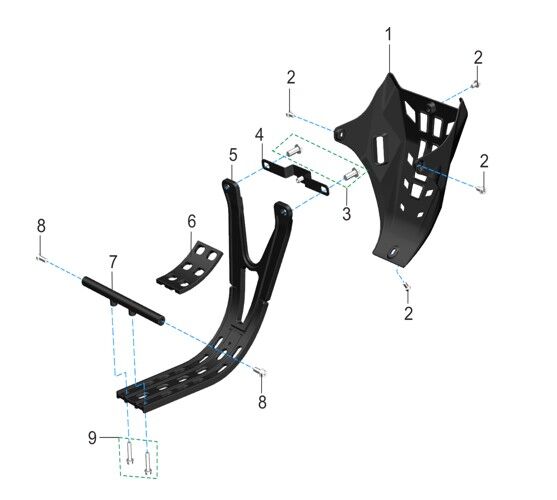

BATTERY PACK HOLDER7 dele
BOTTOM YOKE8 dele

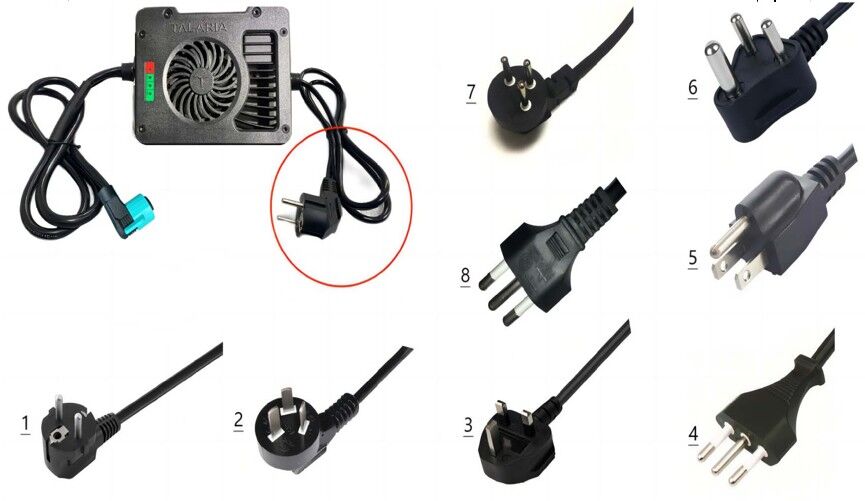

CHARGER2 dele

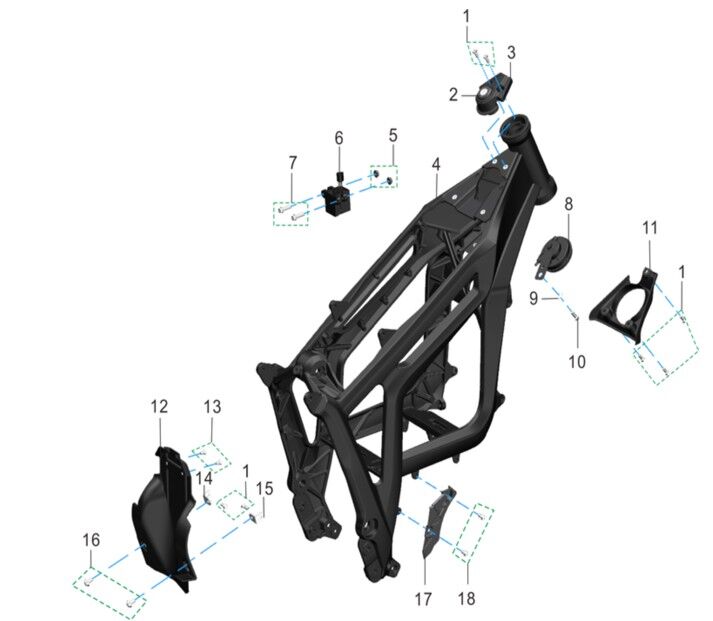

EXTERIOR FIXING PARTS11 dele

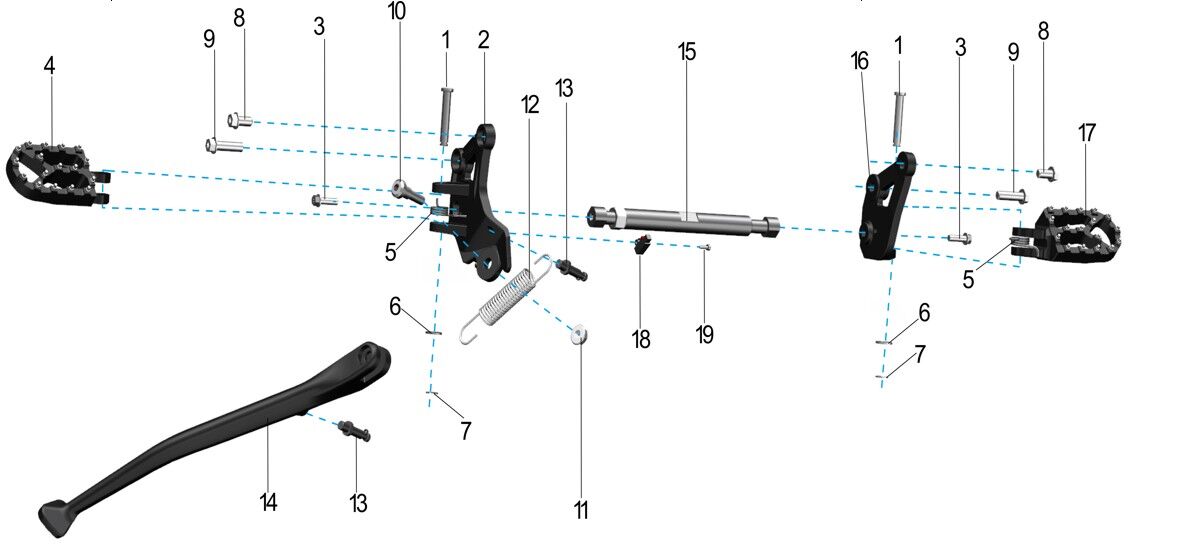

FOOTPEG ASSEMBLY18 dele

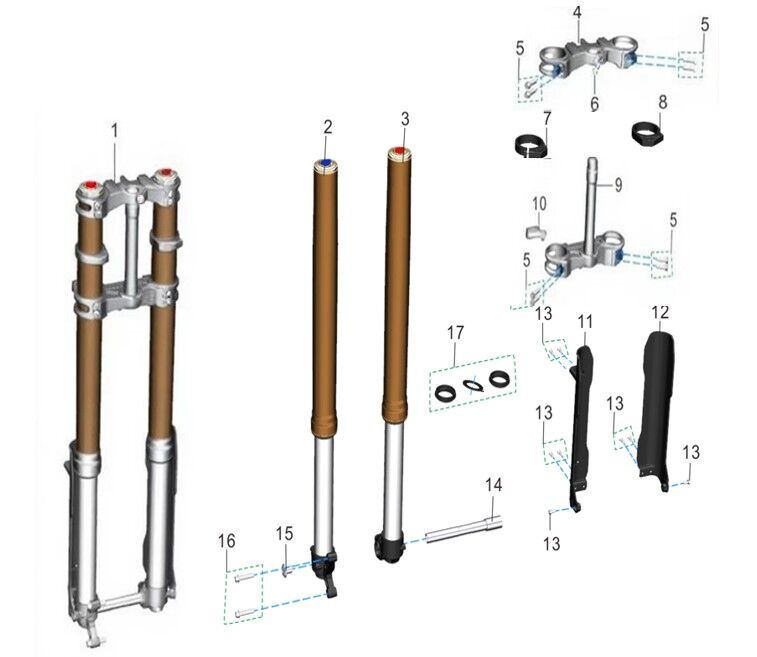

FORK17 dele

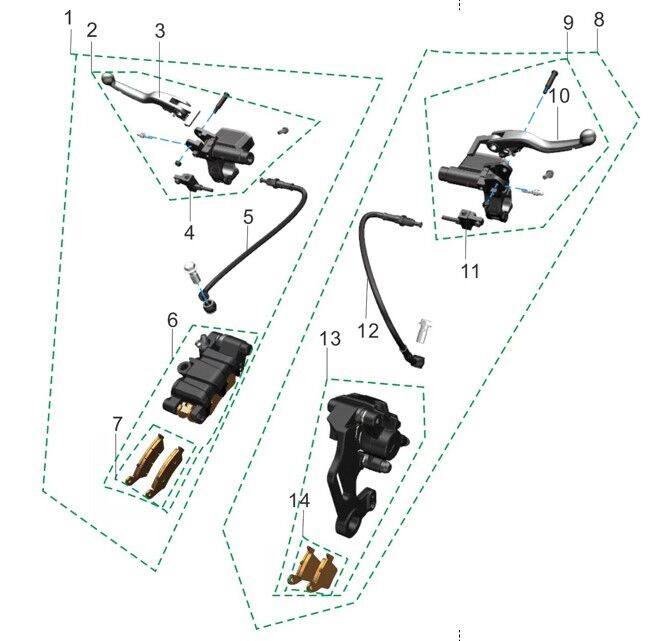

FRONT AND REAR BRAKE SYSTEM12 dele

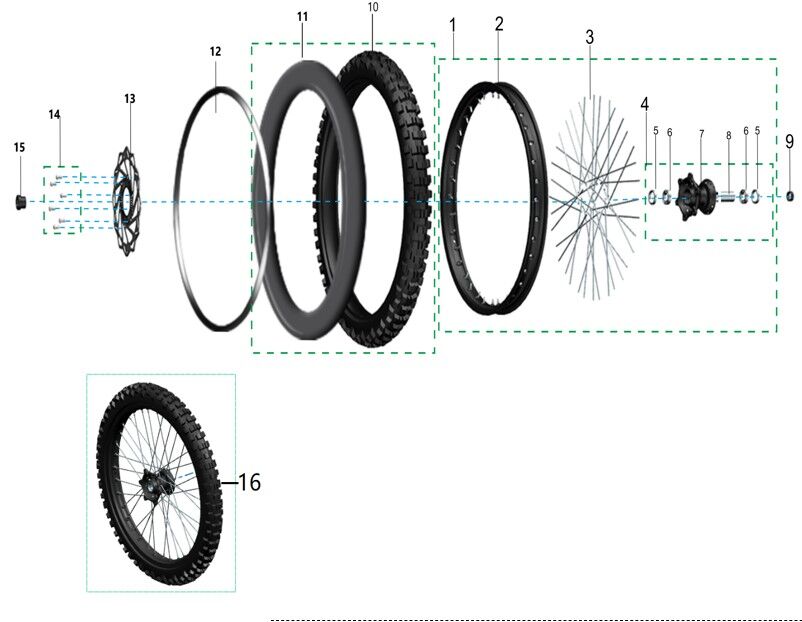

FRONT WHEEL ASSEMBLY13 dele

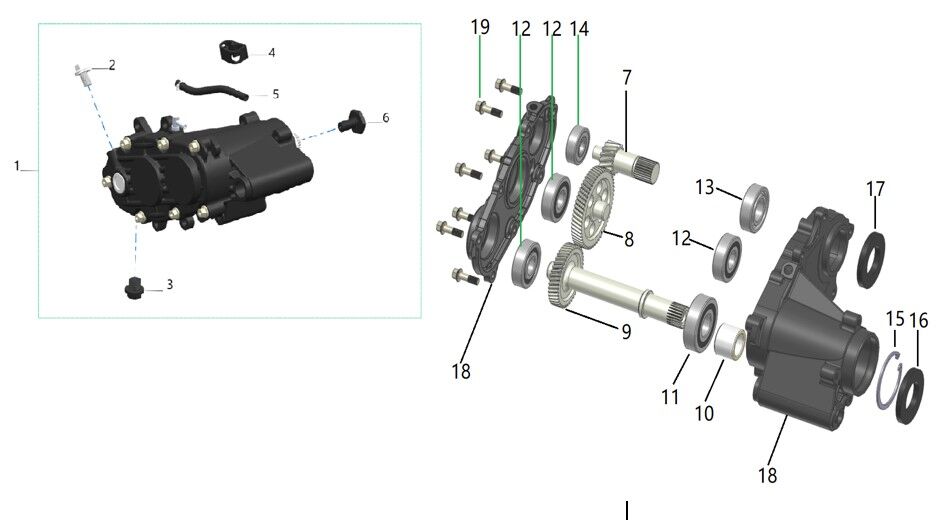

GEARBOX ASSEMBLY13 dele

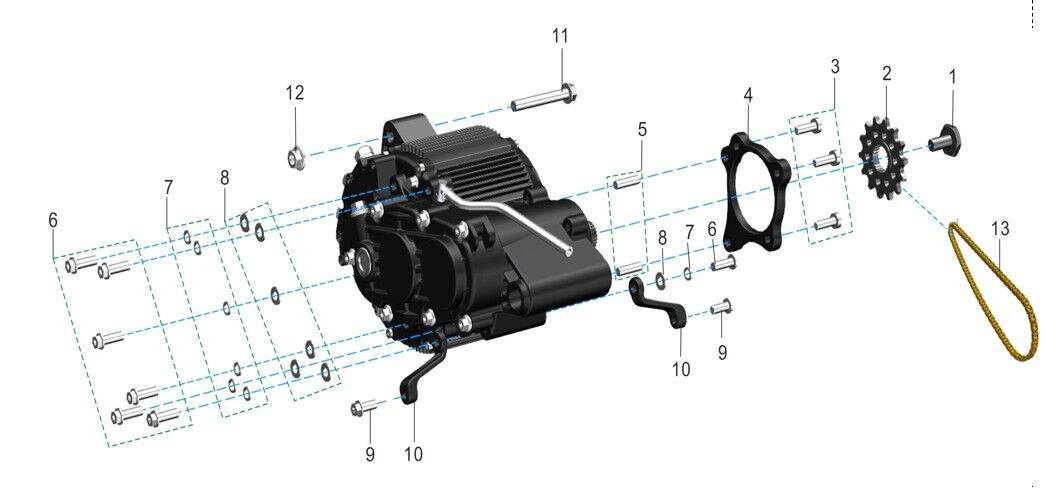

GEARBOX FIXTURE AND CHAIN5 dele

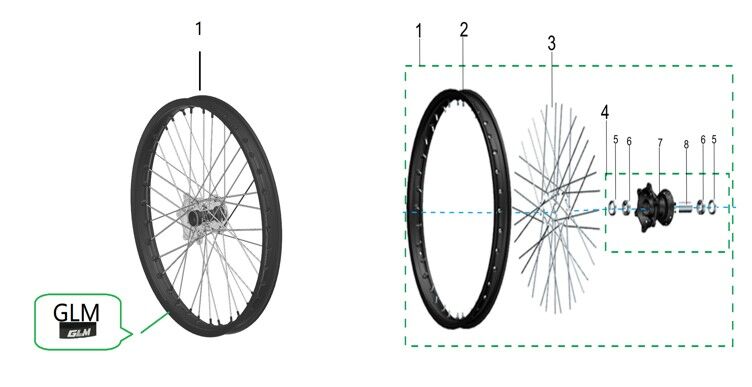

GLM FRONT WHEEL1 del

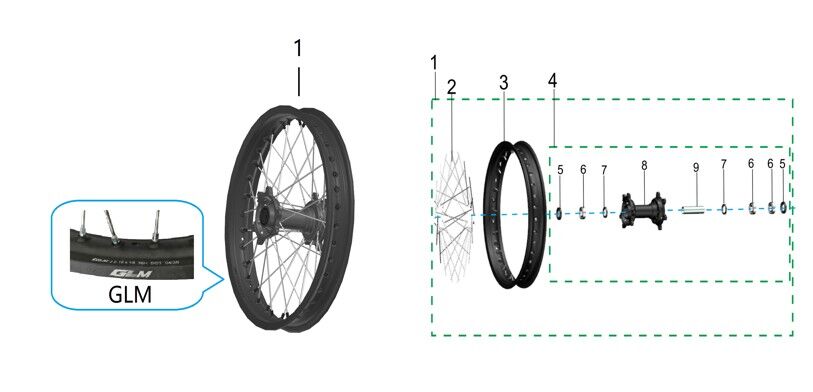

GLM REAR WHEEL1 del

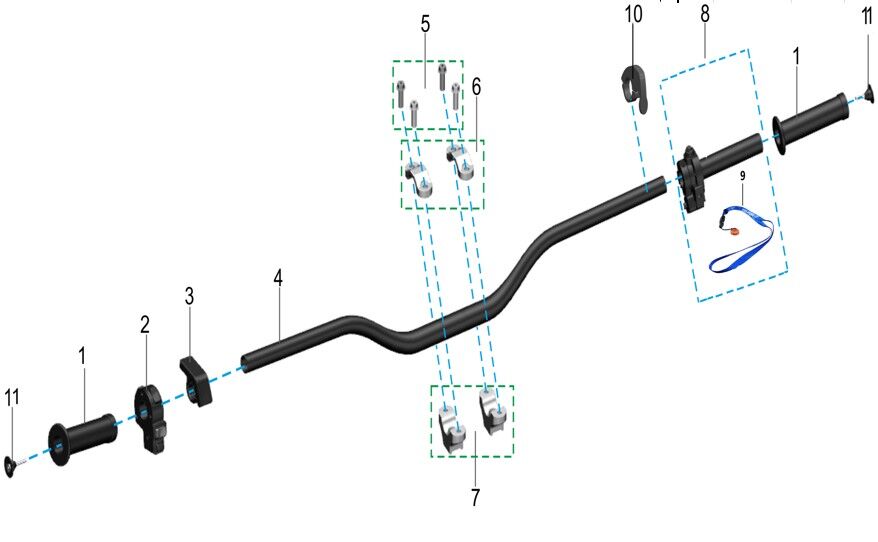

HANDLEBAR11 dele

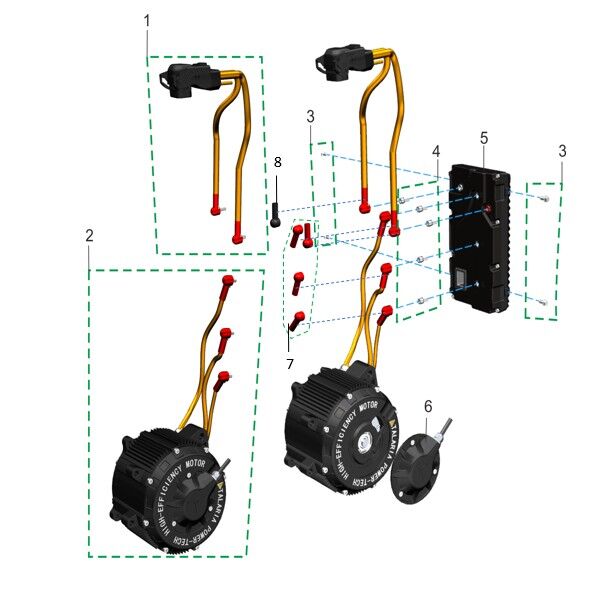

MOTOR ASSEMBLY6 dele

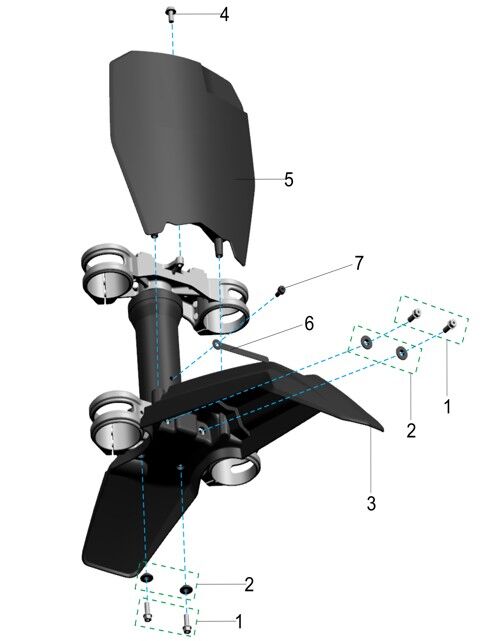

MUDGUARD AND NUMBER BOARD8 dele
PRINTED MEDIA11 dele

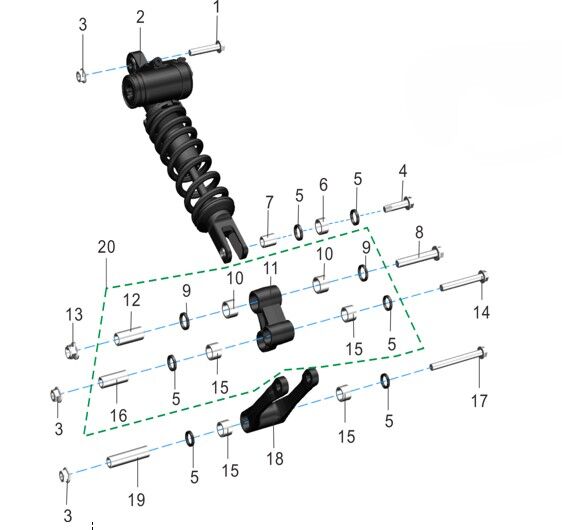

REAR SUSPENSION ASSEMBLY19 dele

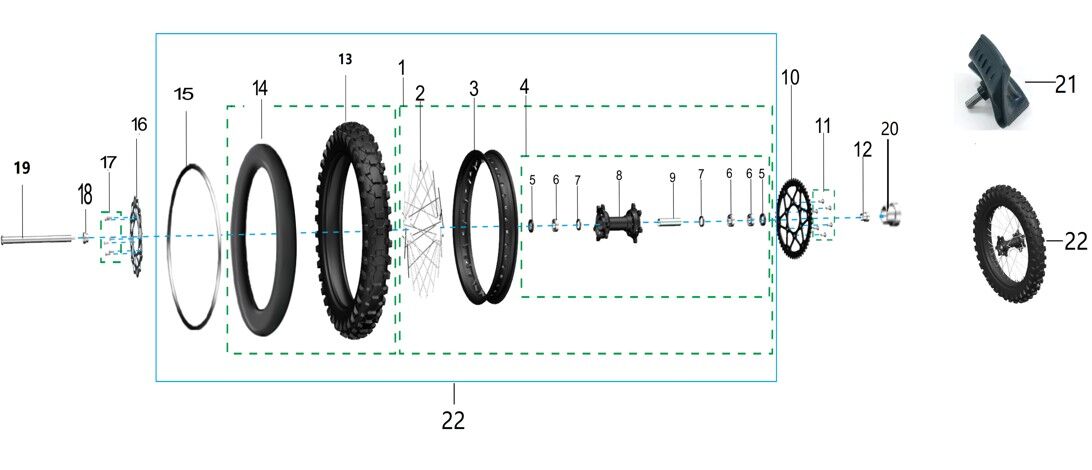

REAR WHEEL ASSEMBLY21 dele

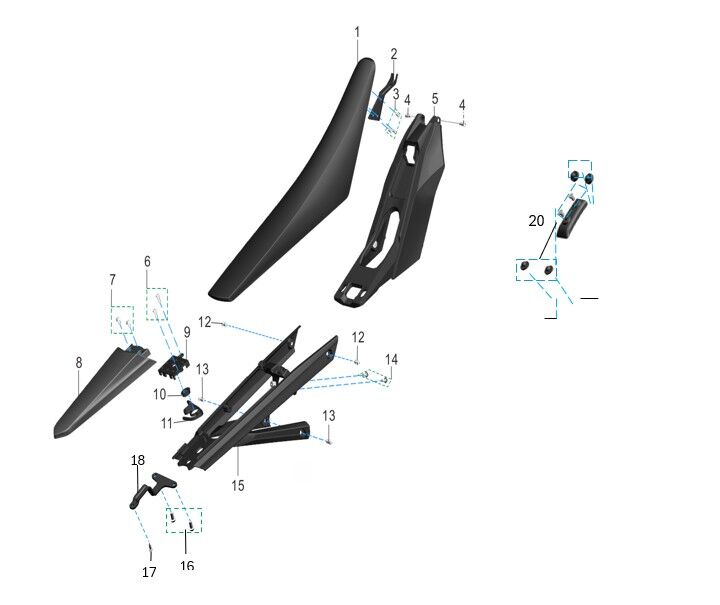

SEAT ASSEMBLY27 dele

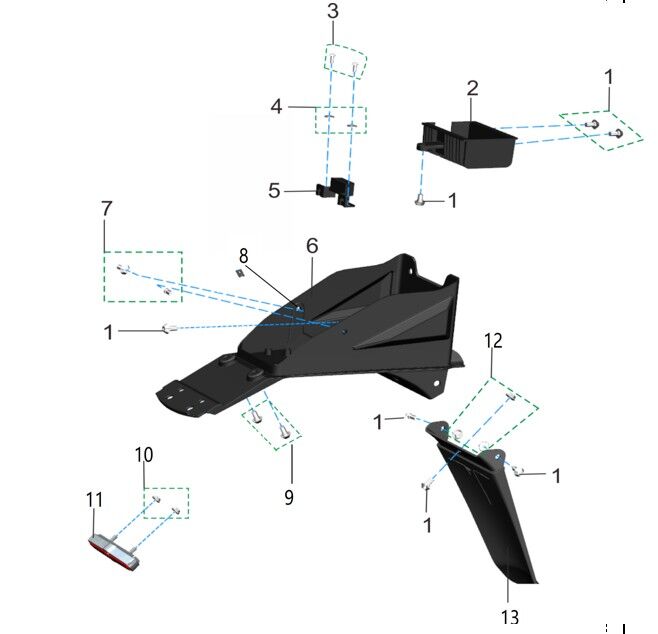

SEAT UNDERTRAY8 dele
STICKER1 del

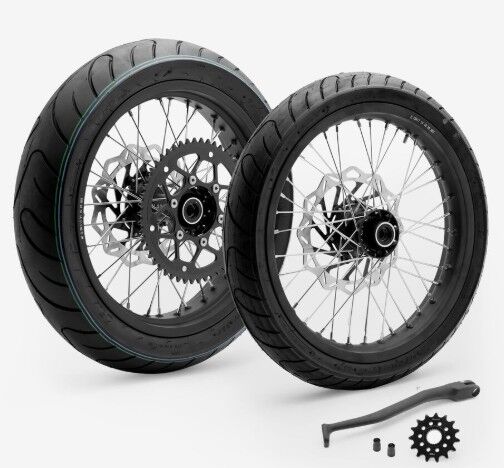

SUPERMOTO WHEEL1 del

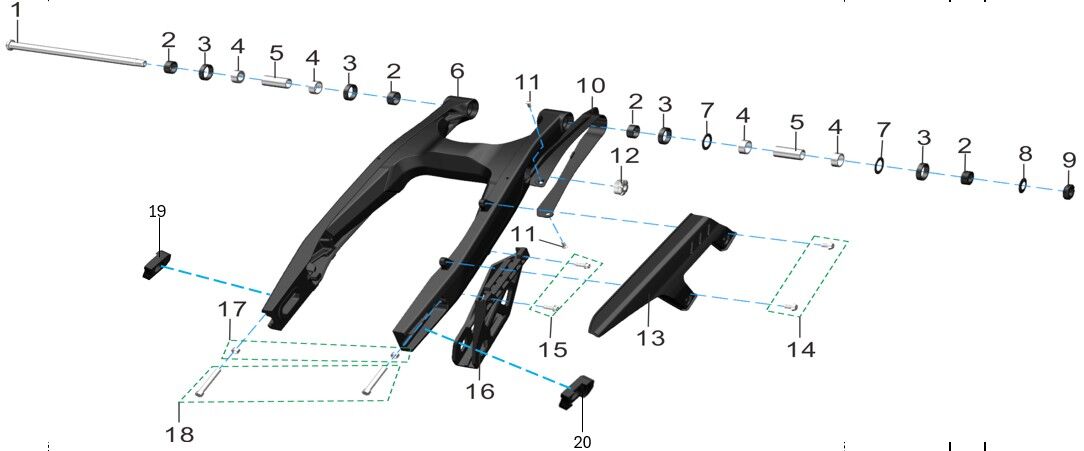

SWINGARM ASSEMBLY19 dele

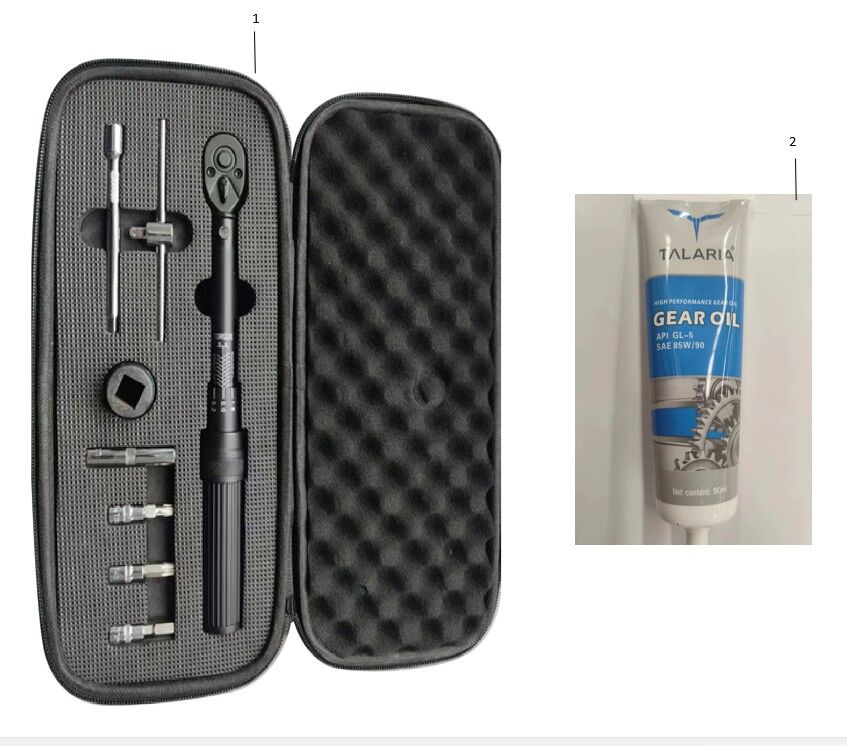

TOOLKIT1 del

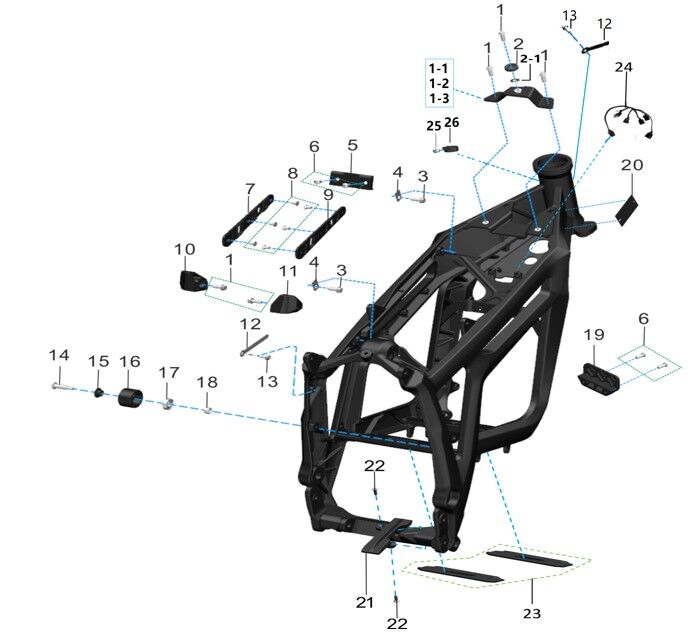

WIRING LOOM AND FRAME ATTACHEMENT19 dele
